SatKing 2500C High Definition Terrestrial TV Meter

SKU: 9612 Price: $319.00


The SatKing 2500C is high definition terrestrial TV meter specially designed for TV installer and electricians . Being MPEG 4 the unit can display a live TV of both SD and HD channels. The unit is easy to use and has all the important measurements built in like SNR, MER, BER.

This unit replaces the very popular SatKing SK-2500B meter. The unit has a built in high power 3000mAH battery so you can do plenty of jobs without re-charging. Unlike many other mid level priced meters on the market this meter you can actually view Digital TV channels and sound, many other mid level cost meters you can’t actually view or listen to TV channels.

The unit is perfect for aligning TV antennas, for electricians to an antenna install or for Foxtel installers to check terrestrial signal for IQ4 and IQ5.

The unit also can be used for alignment of CCTV cameras via the av input and also the unit has HDMI output for testing cable runs to your TV.

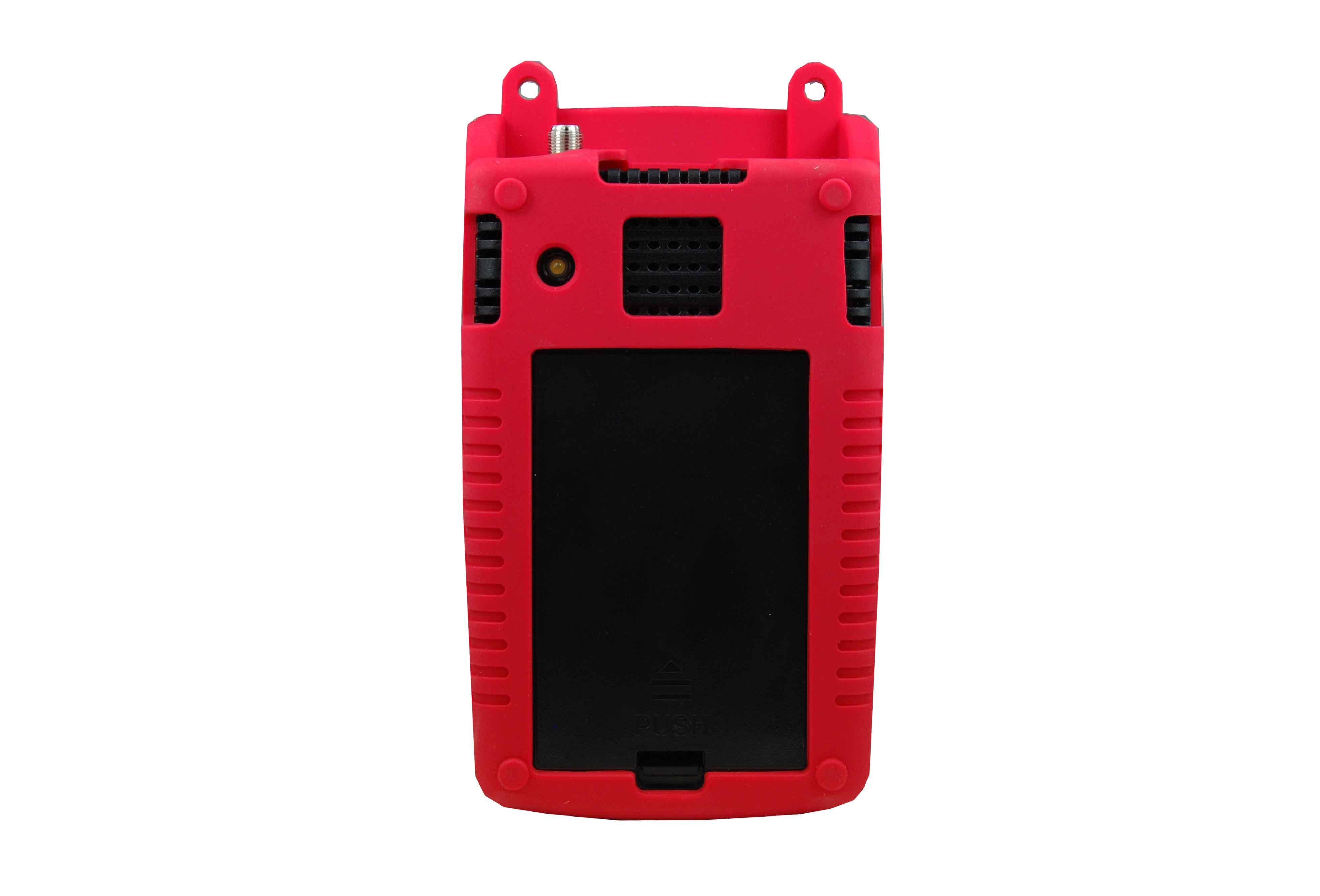

The unit also comes supplied with the red colour rubberised case to protect the unit when on the job.


  • Live TV
  • 3.5” Colour LCD Screen
  • Built in Speaker
  • Built in Light
  • Signal buzzer
  • 3000MAh Lithium Ion Battery
  • HDMI Output
  • AV Input/Output
  • Media Playback Via the USB
  • Software Upgrade via USB
  • Carrier Too Noise Display
  • Compact Size
  • Electronic Program Guide
  • Multi Channel Signal Level Display Mode
  • BER Display
  • Spectrum Analyser Function
  • Mast Head Amp power output
  • Keyboard backlight
  • Can be Used in New Zealand

Technical Specifications:

  • Signal Level: 25 to -65dBm
  • Channel: 6-69
  • Freq Range: 177.500-816.500MHz
  • Antenna Input: 1x F-Type
  • Voltage Input: 12VDC
  • Symbol Range: 2-45,000
  • Video Encoding: MPEG2/MPEG4
  • Audio: MPEG-1 Layer II , MPEG4 HE-AAC


  • 1 x Meter
  • 1x 240v/12V Power Pack
  • 1x 12V Cable
  • 1x Case
  • 1x Strap
  • 1x AV Cable
  • 1x Battery 3000MAh
  • 1x F-Female Input
  • 1x USB 2.0
  • 1x HDMI Output
  • 1x 3.5mm AV Input
  • 1x 3.5mm AV Output
  • 1x 2.1mm DC Jack
